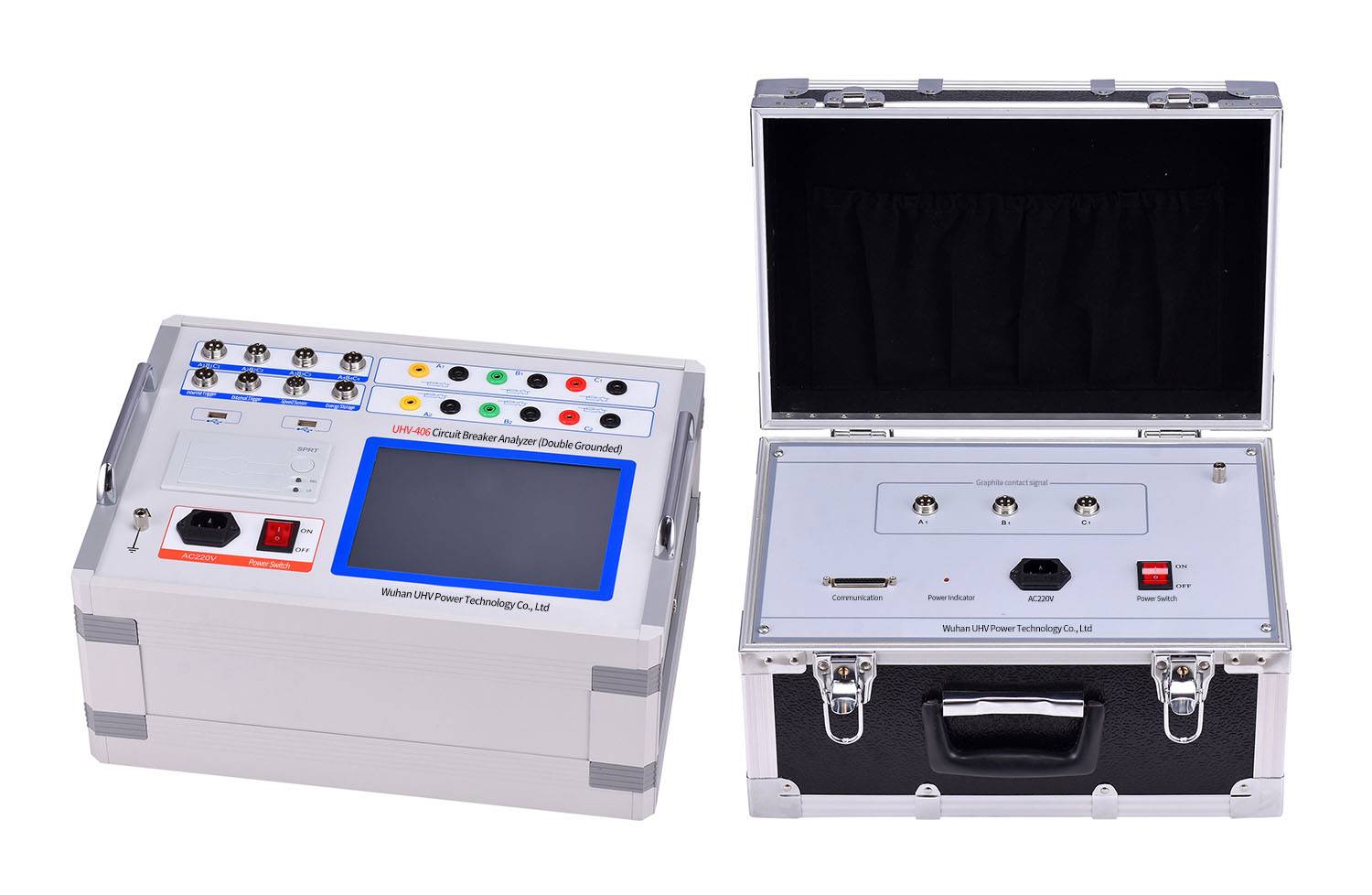

Product Introduction
With growing demands for power system safety and reliability, high-voltage circuit breakers play a vital dual role in both control and protection, with their performance directly impacting grid stability. Our advanced testing instrument provides precise mechanical characteristic measurementsfor various circuit breakers including oil-minimum, oil-bulk, vacuum and SF6 types across all voltage levels. This solution enables accurate dynamicanalysis, offering reliable data for condition assessment and fault diagnosis to ensure optimal breaker performance.
 |  |
المعايير الفنية
| Time measurement | 12 natural switching (closing) time |
| The opening (closing) phase is not at the same time | |
| The difference between different periods of switching (closing) | |
| Closing (opening) Bouncing time (number of bounces) | |
| Different testing range: 1ms ~ 99ms, resolution: 0.01ms | |
| Internal trigger test range: 1ms ~ 999ms, resolution: 0.01ms | |
| 1000ms ~ 9999ms, resolution: 0.1ms,10000ms to 200000ms Resolution: 1ms | |
| External trigger test range: 0.01ms ~ 200s | |
| Accuracy within 1000ms: 0.05%±0.1ms | |
| velocity measurement | instant separating (instant closing) velocity |
| Appointed time slot (stroke segment or angle segment) average | |
| velocity | |
| velocity measurement | Just minute (just combined) speed |
| Average speed for a specified period of time (stroke or Angle) | |
| نطاق القياس | 0.1mm sensor 0.01 ~ 20.00m/s |
| 345° Angle sensor 0.01 ~ 20.00m/s | |
| Laser sensor 0.01 ~ 15.00m/s | |
| Travel measurement | 3. Moving contact stroke (stroke) (optional for 3-way stroke measurement) |
| Contact stroke (open distance) | |
| Over travel | |
| Overshoot or rebound stroke | |
| نطاق القياس | Linear sensor: 50mm, measuring range: 0-50mm, resolution :0.1mm |
| Rotating sensor: 345°, measuring range: 0-1000mm, resolution: 0.08° | |
| The sensor has an invalid area of 15 degrees, and the effective area of the sensor can be seen in the instrument during installation, and the value displayed is about 160-200 degrees. | |
| Acceleration sensor measurement range: 0-300mm, resolution: 0.1mm | |
| Coil current | Maximum current 20A, resolution: 0.01A |
| Coil resistance measurement range | 0 ~ 2000Ω, resolution: 0.01Ω |
| Instrument power supply | AC220V ± 10%; 50Hz ± 10% |
| Dc power output | DC6 ~ 270V continuous adjustable, DC24V≤15A (short time), DC220V≤ 20A(short time) |
| External trigger voltage | 10.AC/DC10-300V, current ≤120A |
| Isolation switch measurement range | (1) Voltage output: DC6～270V(adjustable) |
| (2) Power output time: 0.01-20 seconds (configurable) | |
| (3) The maximum acquisition time of the fracture signal is 200 seconds | |
| (4) Can measure fracture closing, opening time, three-phase different periods, bounce time and number | |
| Mainframe volume | 400×263×175mm |
| استخدام البيئة | -20℃~+50℃ |
| الرطوبة النسبية | ≤90% |
 |  |  |
مواصفات المنتج

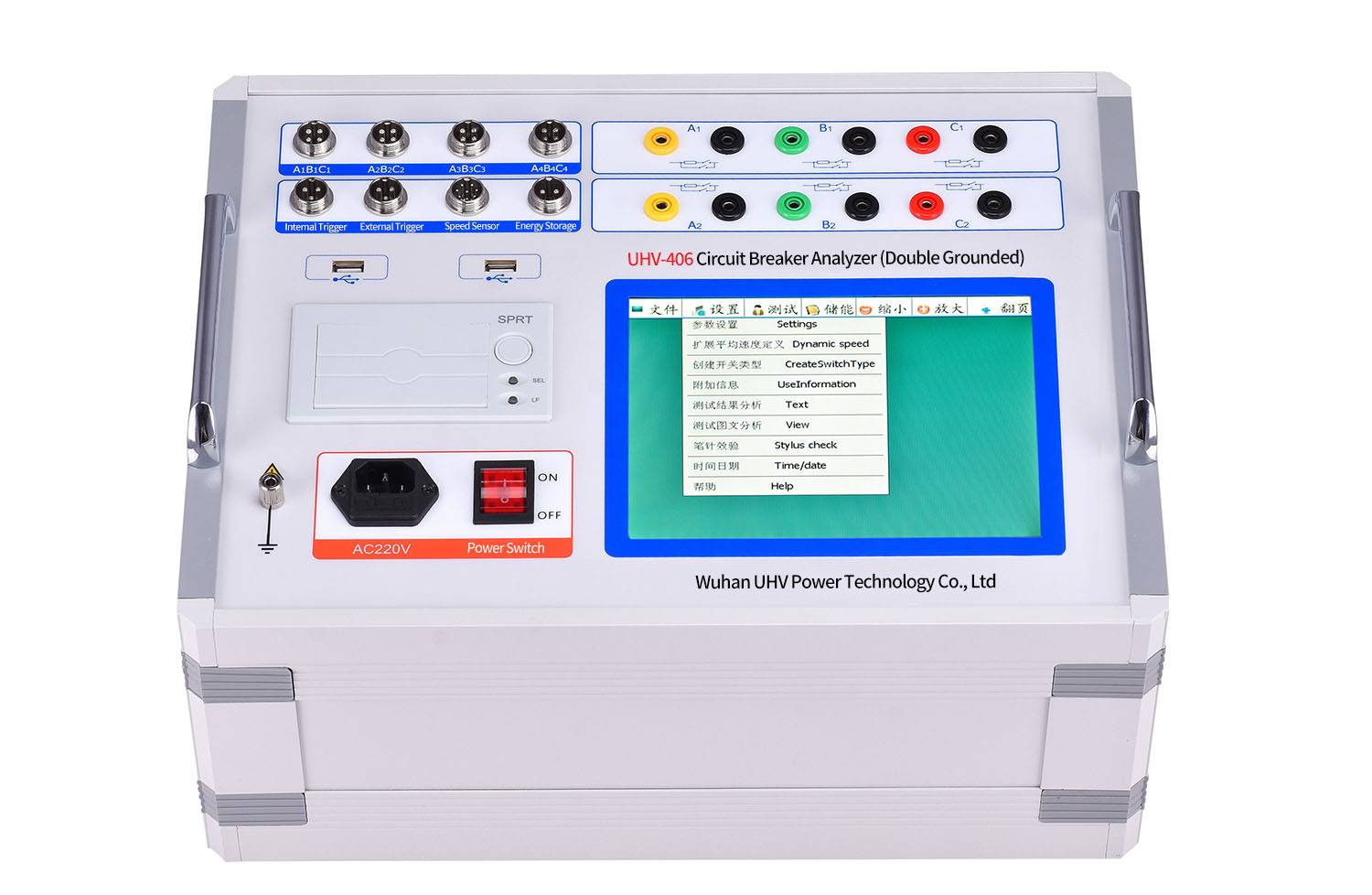

1、High-Resolution Display

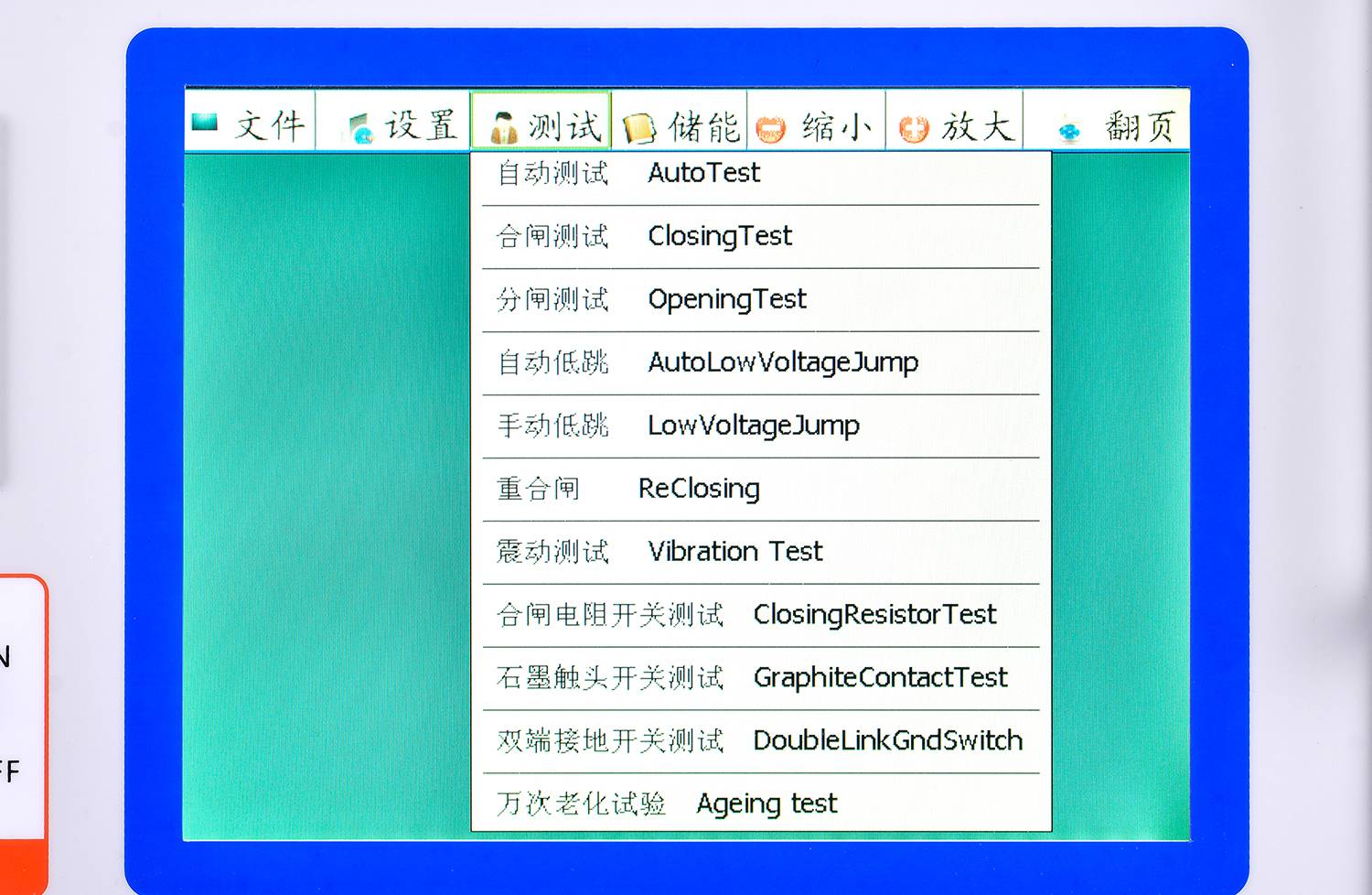

8.4-inch imported sunlight-readable color touchscreen
Embedded OS with intuitive Windows-style interface, optimized for field operation
2、Efficient Data Output
Integrated high-speed thermal printer for instant on-site report generation
3、All-in-One Power System
Built-in adjustable power supply (DC 20–265V/20A) eliminates external power needs
Configurable coil operating voltage for comprehensive low-voltage breaker testing

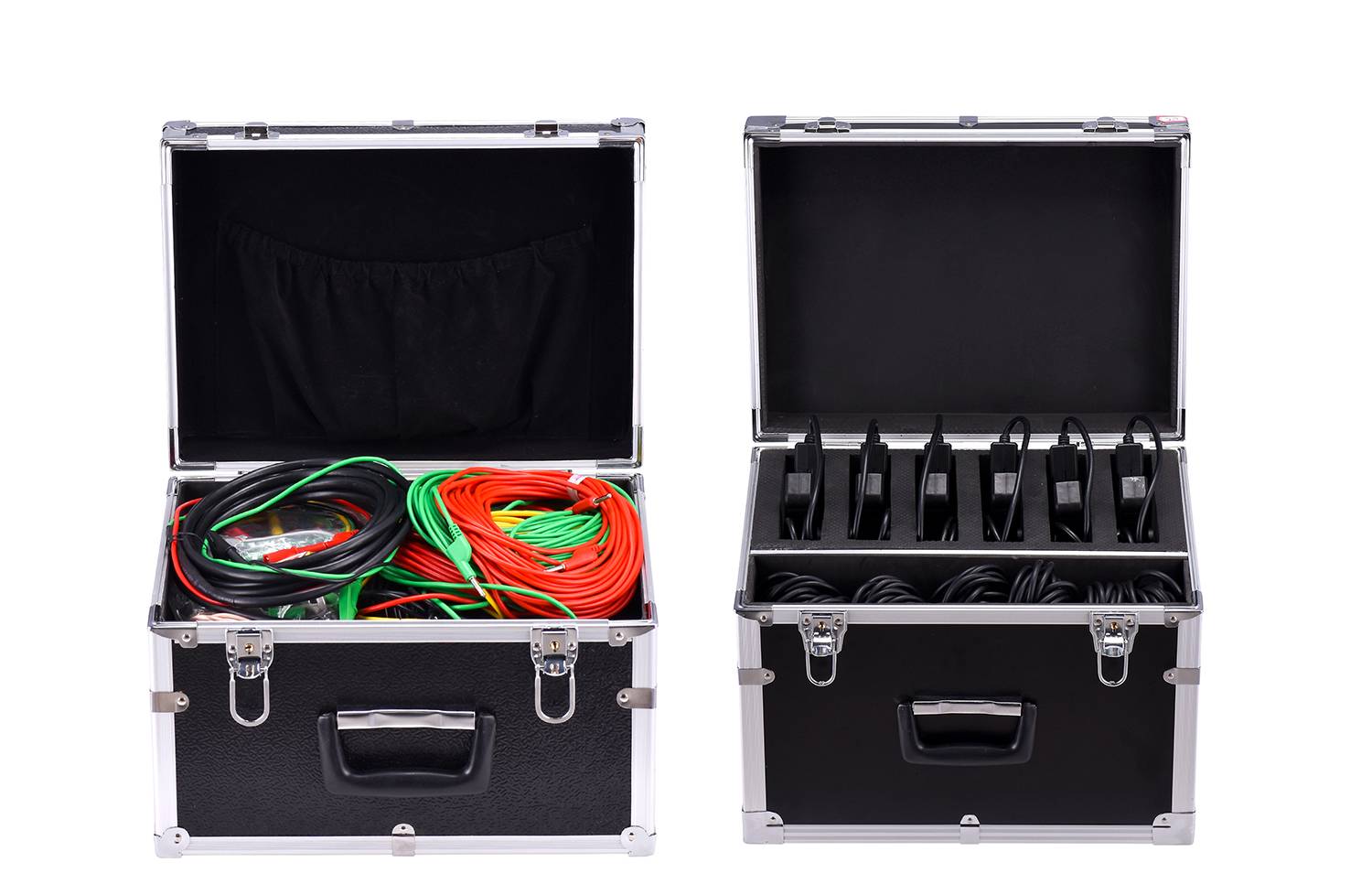

4、Comprehensive Sensor Kit
Includes linear, rotary, and universal sensors with multi-functional quick-connect brackets
Tool-free installation for rapid deployment
5、Universal Compatibility
Supports all SF6 switches, GIS, vacuum circuit breakers, and oil circuit breakers (domestic/international)
6、Single-Test Efficiency
Captures all measurement data and waveforms in one operation cycle
7、Expansive Data Capacity
Stores 30,000 test records (expandable via memory card)
Built-in RTC for accurate timestamping and archiving
8、Seamless Data Transfer
USB interface for direct data export and PC analysis

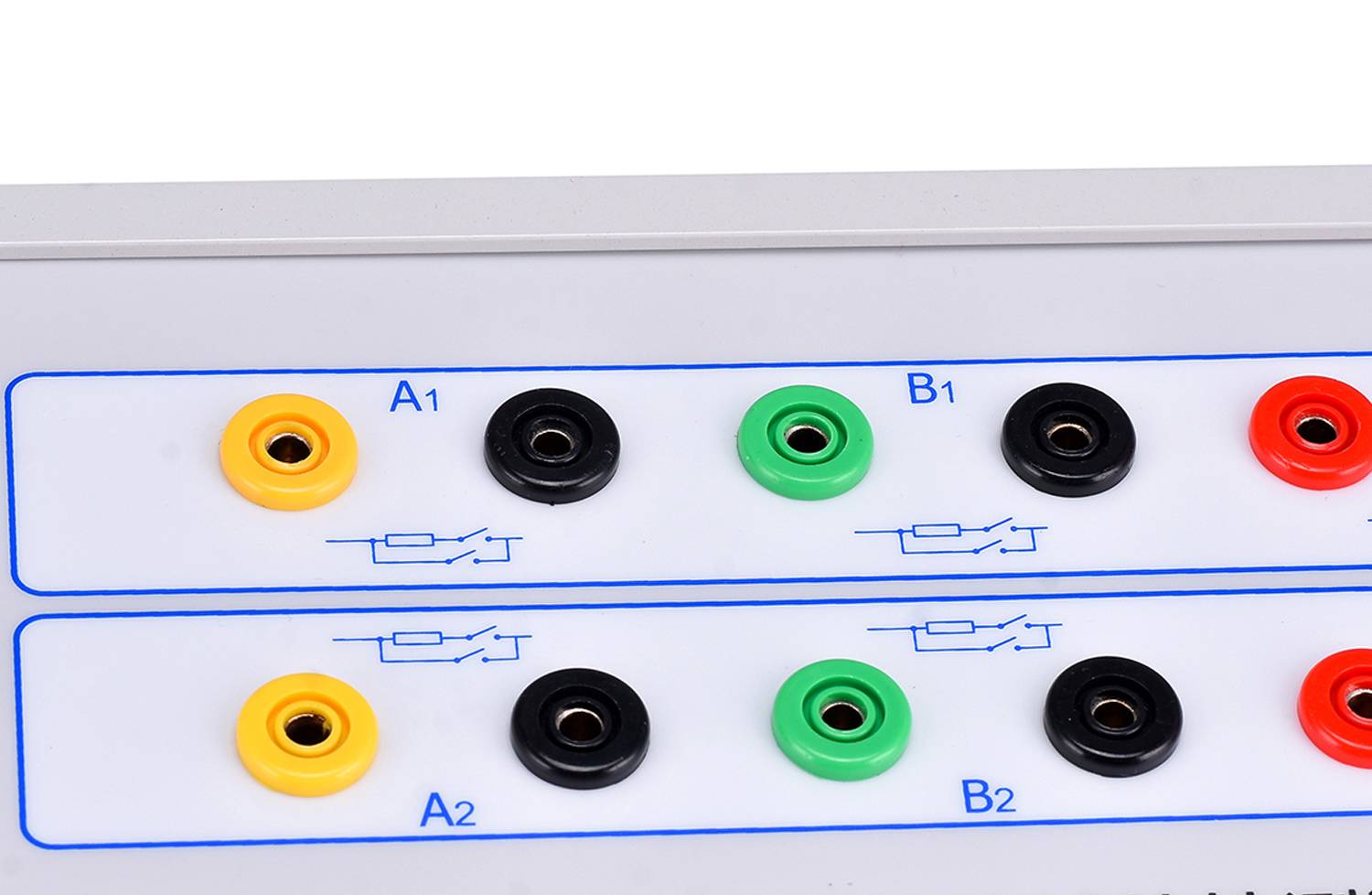

9、Multi-Channel Measurement
Simultaneously tests:
12 contact breaks
6 closing resistors
3 graphite contacts
3 dual-grounding terminals
10、Advanced Analysis Tools
Envelope curve generation (2–10 operations) for comparative analysis
Vibration frequency diagnostics for switch mechanics
11、Industrial-Grade Reliability
800kV substation-rated anti-interference design
Core functionality
Rapid time measurement (high-precision time parameter): capable of simultaneously measuring the opening and closing time, phase out of phase, and three-phase different periods of multiple circuit breakers. High precision measurement has been achieved, allowing any subtle time deviation to be exposed.
Comprehensive analysis of speed and stroke: The instrument can automatically calculate key physical indicators such as initial opening speed, initial closing speed, maximum speed, as well as opening distance, overtravel, and total stroke, to comprehensively evaluate the mechanical transmission efficiency of the switch.
Bounce time and frequency capture: Accurately record the contact bounce time and bounce frequency of the switch during the closing process. Bouncing is a hidden danger that can cause contact burnout and arc fluctuations, and high-precision capture can provide key technical basis for equipment maintenance.
Intelligent action voltage testing: The device is equipped with an adjustable operating power supply, which can automatically or manually perform low voltage action tests (low voltage closing, low voltage opening) on the circuit breaker to evaluate the reliability of the coil under extreme voltage conditions.
Application Scenarios
1. Power system maintenance
In the daily maintenance of the power system, the tester is used to regularly check the mechanical characteristics of high-voltage switches to ensure that the equipment is in good operating condition. It can measure parameters such as opening and closing time, speed, and stroke, and promptly detect switch performance degradation or potential faults, ensuring the safe and stable operation of the power grid.
2. Fault analysis
When the high-voltage switch malfunctions, the tester can quickly capture the mechanical characteristic data at the time of the fault, such as exceeding the limit of asynchronous opening and abnormal bounce times. By comparing normal data, analyzing the cause of faults, providing a basis for maintenance, and shortening the time for fault handling.
3. Equipment development
During the development phase of high-voltage switches, testers are used to verify whether the mechanical characteristics of newly designed switches meet the requirements. Its high-precision measurement function can provide detailed data such as time, speed, and travel, assisting R&D personnel in optimizing design and improving product performance.
4. On site emergency response
In case of sudden malfunction or emergency repair, the tester can be quickly deployed to the site to perform real-time detection of high-voltage switches. Its portability and ease of operation make it an important tool for on-site emergency response, helping technicians quickly locate problems and restore power supply.
5. Training and teaching
Testers are used in practical teaching in electrical engineering training to enable students to intuitively understand the working principle and mechanical characteristics of high-voltage switches. Through practical operation, students can master the skills of switch detection and improve their ability to diagnose faults.
6. Quality inspection
In the production process of high-voltage switches, the tester is used for quality inspection before leaving the factory to ensure that the mechanical characteristics of each switch meet the standards. It can automatically generate detection reports, provide data support for quality traceability, and ensure product quality.
Frequently Asked Questions (FAQ)
Q1: What are the main items that can be tested by the "Circuit Breaker Analyzer"? A1: It mainly includes key indicators such as contact resistance of contacts, current of opening and closing coils, closing/opening time, bounce time, and synchronicity.
Q2: Why is it necessary to conduct switch characteristic testing? A2: Testing aims to evaluate the operational status and reliability of switchgear, promptly detect potential faults, prevent accidents, and ensure the safety of the power system.
Q3: Will the ambient temperature affect the test results during the testing process? A3: Yes, extreme temperature changes can affect the sensitivity and accuracy of the tester. When conducting high-voltage equipment testing, it should be carried out in a stable environment as much as possible.
Q4: What should I do if the test data shows that the switch action is slow? A4: This usually indicates that there may be issues with the mechanical parts of the switch, such as poor lubrication, wear, or excessive damping. The switch needs to be inspected and components replaced if necessary.
Q5: What are the advantages of the testing equipment of Wuhan UHV Power Technology Co., Ltd. in power equipment testing? A5: Wuhan UHV Power Technology Co., Ltd.'s products are known for their high precision, stability, and ease of use, and can provide professional technical support, making them a reliable choice for switchgear testing.
