Product Introduction

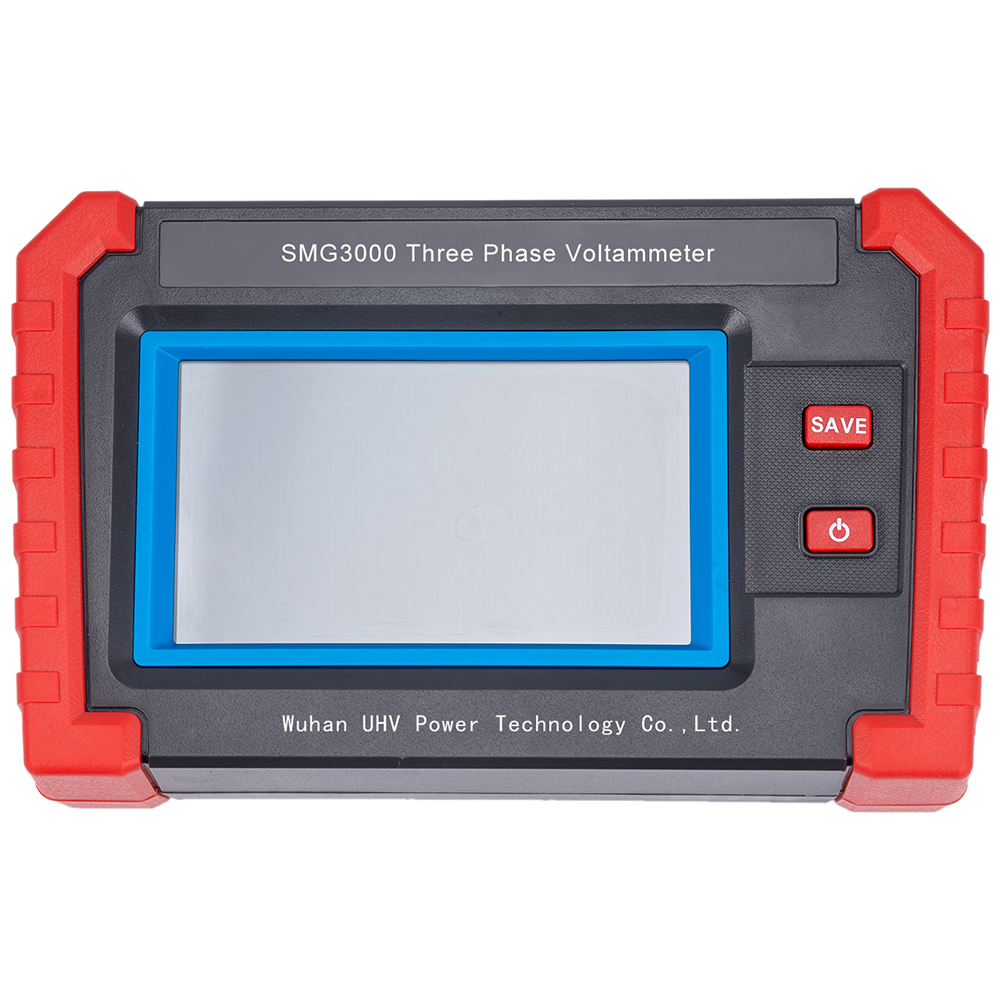

Wuhan UHV Power Technology Co.,Ltd., is a professional manufacturer and supplier of high-voltage power testing equipment in China.The Three-Phase Phase Voltmeter is designed for measuring three-phase electrical parameters. It enables high-precision measurement of voltage, current, phase angle, frequency, power, power factor, and other electrical parameters in three-phase systems.

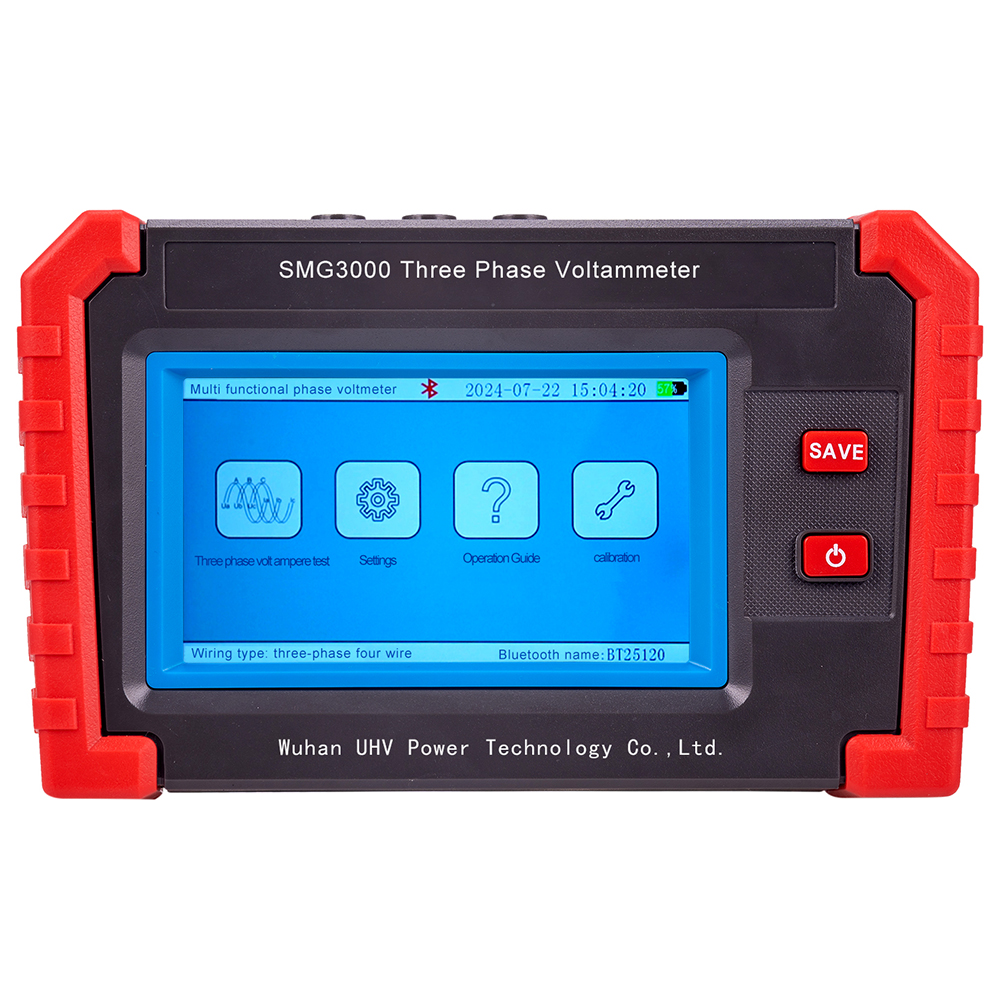

The instrument features a high-speed Cortex M3 processor combined with a 24-bit high-speed ADC for accurate measurement and calculation of electrical parameters. It is equipped with a fully graphical user interface and a true-color display with a resolution of 320×240.
 |  |  |
Product Characteristics
1. High Measurement Accuracy: Voltage and current accuracy up to Class 0.3; phase accuracy up to ±0.3°.
2. Multiple Measurement Modes: Supports single-phase, two-phase, and three-phase measurement modes, as well as three-phase four-wire and three-phase three-wire configurations.
3. Harmonic Analysis: Measures harmonics up to the 21st order for both voltage and current.
4. Automatic Real-Time Measurement: Operators only need to complete the wiring, and the instrument automatically measures and updates data in real time, facilitating on-site analysis.
5. Complete Isolation Technology: Adopts full isolation technology to prevent safety accidents.
6. Comprehensive Power Measurement: Measures active power, reactive power, apparent power, three-phase power, and power factor.
معلمات المنتج
Baseline conditions and working conditions
| Impact quantity | Benchmark conditions | ظروف العمل | ملاحظة |
| درجة الحرارة المحيطة | 23℃±1℃ | -10℃~40℃ | ---- |
| الرطوبة البيئية | 40%~60% | ＜80% | ---- |
| الرطوبة البيئية | موجة جيبية | موجة جيبية | β=0.01 |
| Signal frequency | 50 هرتز ± 1 هرتز | 45Hz~65Hz | ---- |
| Instrument operating voltage | 7.4V±0.2V | 7.4V±1V | ---- |
| Current amplitude during phase, frequency, and sequence measurement | 4A±10mA | 1mA~20A | ---- |
| Voltage amplitude during phase, frequency, and sequence measurement | 100V±10V | 2V~700V | ---- |
| Current amplitude when measuring power and power factor | 4A±10mA | 1mA~20A | ---- |
| Voltage amplitude during power and power factor measurement | 100V±10V | 2V~700V | ---- |
| External electric field, magnetic field | Should be avoided | ||
| وزن | The tested wire is located at the approximate geometric center of the jaw | ||
General technical specifications
| مزود الطاقة | DC 7.4V,5200mAh rechargeable lithium battery |
| Function option | Touch screen selection |
| وضع العرض | 5-inch touch color screen |
| LCD size | 108mm×65mm |
| Host size | 210mm×129mm×68mm |
| Quality | Main unit: approximately 870g; complete machine: approximately 2kg (including packaging box) |

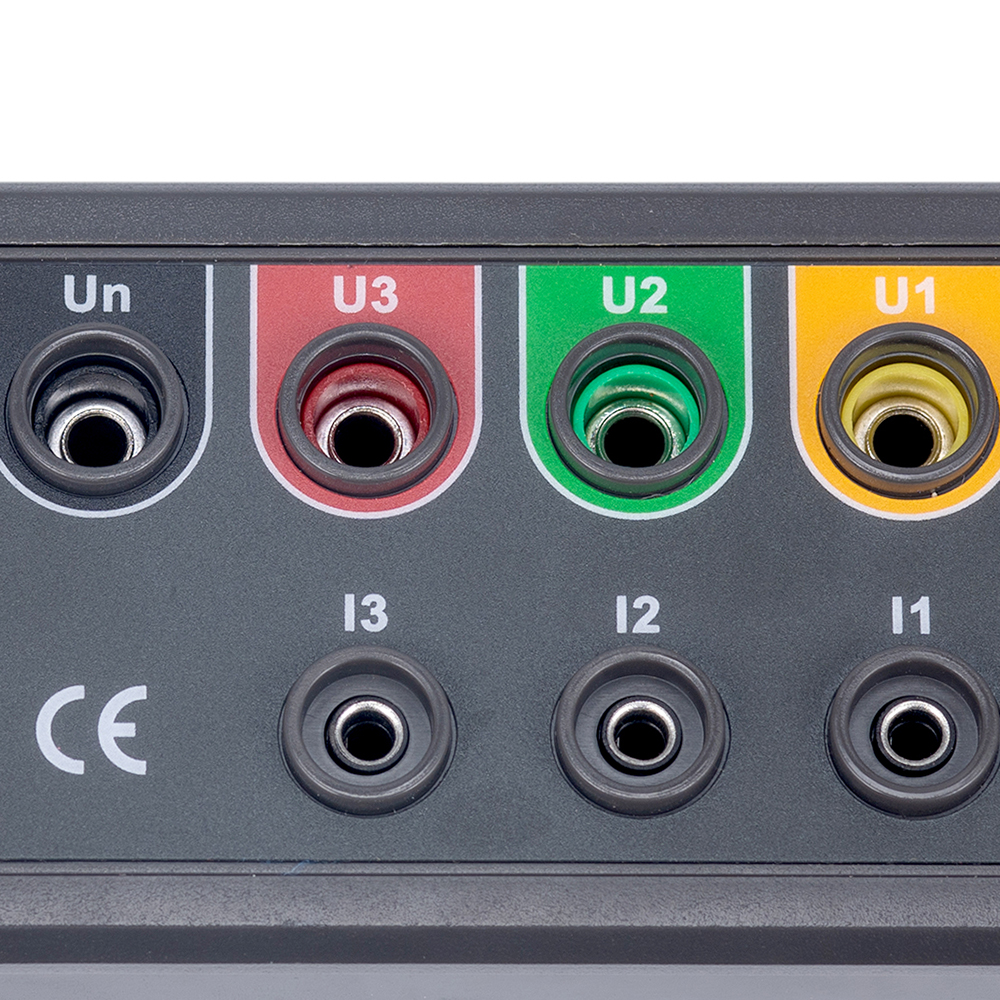

| Test line | One yellow, green, red, and black voltage test line each |
| Current clamp | Pliers jaw size φ8mm, 3 pieces |
| مخزن البيانات | 1000 groups |
| Data lookup | Have |
| Data upload | USB interface, test record data uploaded to computer, exportable to Excel format |
| Battery voltage | The battery level indicator shows that a prompt to charge is given when the battery voltage drops below 10% |
| Auto Shutdown | Automatically shut down after 15 minutes of inactivity since startup, shutdown reminder before shutting down |
| Working hours | When fully charged, the device can operate continuously for approximately 12 hours |
| استهلاك الطاقة | Working (backlight at 50): 320mA; |
| ظروف العمل | Temperature: -20 to 50℃, Relative humidity: 0 to 95% HR without condensation |
| شروط التخزين | Temperature: -30 to 60℃, Relative humidity: 0 to 75%RH |
Basic error and performance indicators under reference conditions
| Measurement type | نطاق القياس | دقة | دقة |
| الجهد االكهربى | 2V~100V | ±0.3%Fs | 0.0001V |
| 100V-700V | 0.0001V | ||
| حاضِر | 0.001A-1A | ±0.3%Fs ±0.2%dgt | 0.0001أ |
| 1A-10A | 0.0001أ | ||
| 10A-20A | 0.0001أ | ||
| Harmonic wave | 2nd to 21st order | - | - |
| مرحلة | 0°~360° | ±1° | 0.1° |
| تكرار | 45Hz~65Hz | ±0.03Hz | 0.0001Hz |
| Power(including active power, reactive power, and apparent power) | 0.002W~1000W | ±0.3%Fs | 0.0001W |
| 1000W~10000W | 0.0001W | ||
| 10000W-14000W | 0.0001W | ||
| Power factor | -1.000~1.000 | ±0.03 | 0.001 |
Application Scenarios
Substation routine maintenance
Used to detect the contact resistance and switching status of each tap position of the on-load tap-changer, determining whether the equipment is operating normally.
Transformer preventive testing
Periodically test tap-changer performance to promptly identify potential issues such as poor contact and abnormal resistance.
Acceptance testing before commissioning of new transformers
Verify the installation and commissioning quality of the on-load tap-changer to ensure the equipment meets operational requirements before commissioning.
Testing after transformer major overhaul
Re-test the tap-changer after maintenance to verify the repair quality of contacts, transition resistors, and the switching mechanism.
On-load tap-changer fault diagnosis
Perform testing and fault analysis for issues such as abnormal tap changing, poor contact, and abnormal switching time.
Testing after transformer abnormalities or faults
After short-circuit impacts, abnormal tap changes, or other fault events, quickly determine whether the on-load tap-changer has been damaged.
FAQ about Portable Handheld Phase Voltammeter Tester
Q:What is a Portable Handheld Phase Voltammeter Tester?
A: It is a portable testing instrument used to measure voltage, phase angle, phase sequence, and other electrical parameters, helping technicians quickly verify the electrical condition of power systems and equipment.
Q:What are the main applications of the tester?
A: It is commonly used for power system commissioning, substation maintenance, transformer testing, phase identification, wiring verification, and on-site electrical troubleshooting.
Q:Where can this tester be used?
A: It is suitable for substations, power plants, electrical maintenance sites, industrial facilities, laboratories, and other environments requiring portable electrical measurements.
Q:What safety precautions should be taken during testing?
A: Operators should follow the instrument's rated measurement range and applicable electrical safety procedures. Proper test leads, insulation protection, grounding, and personal protective equipment should be used as required.
