Product parameters

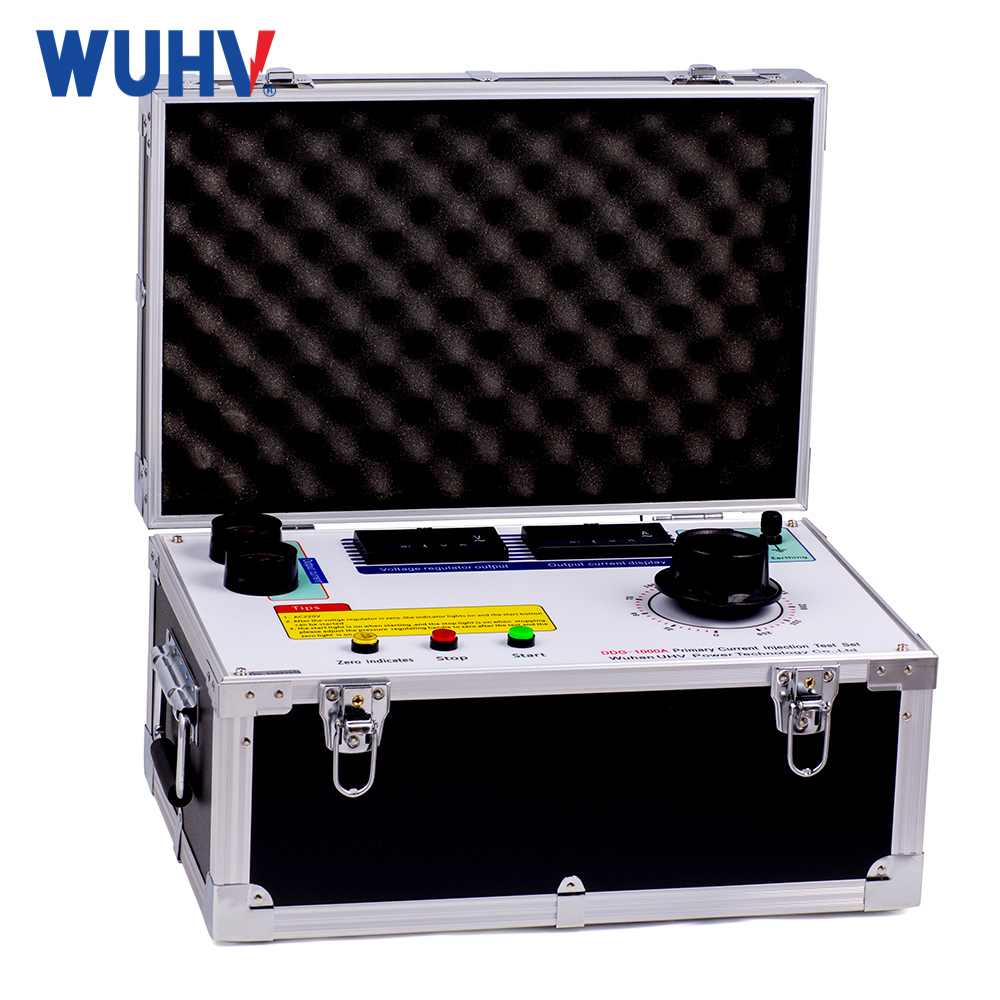

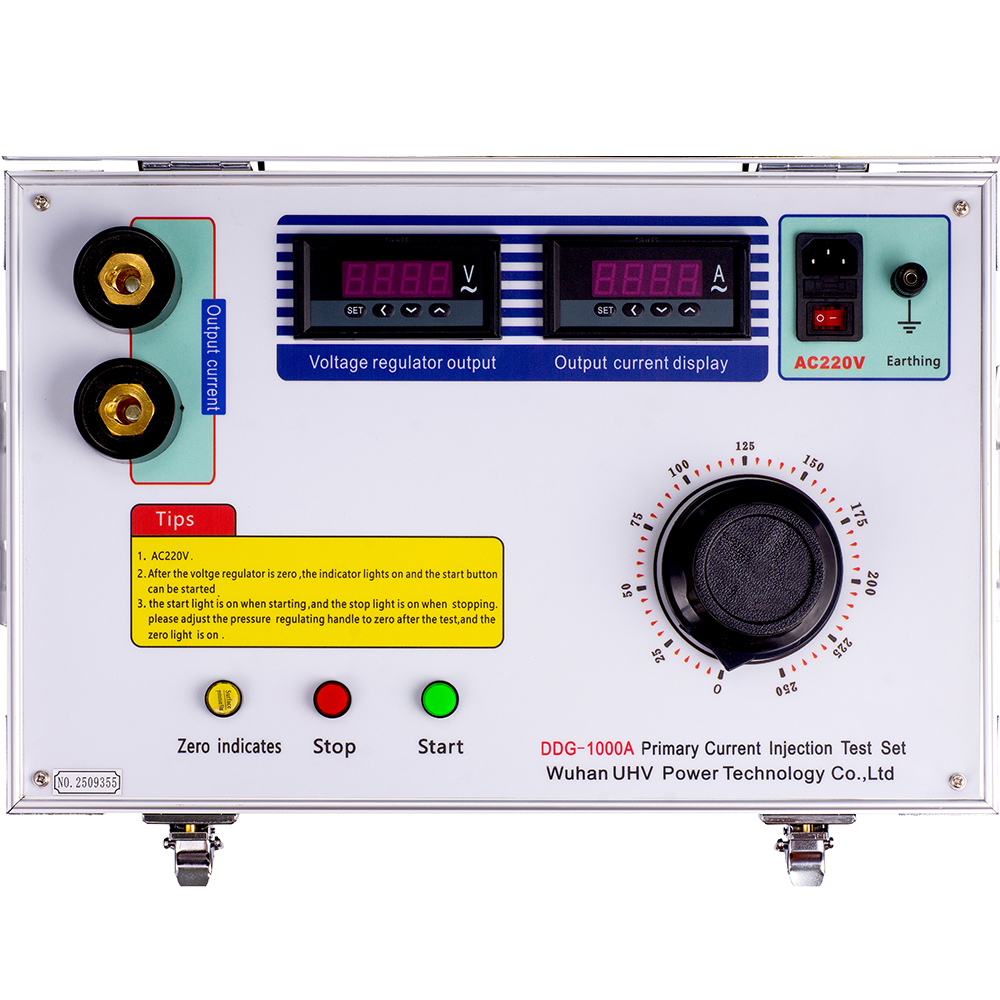

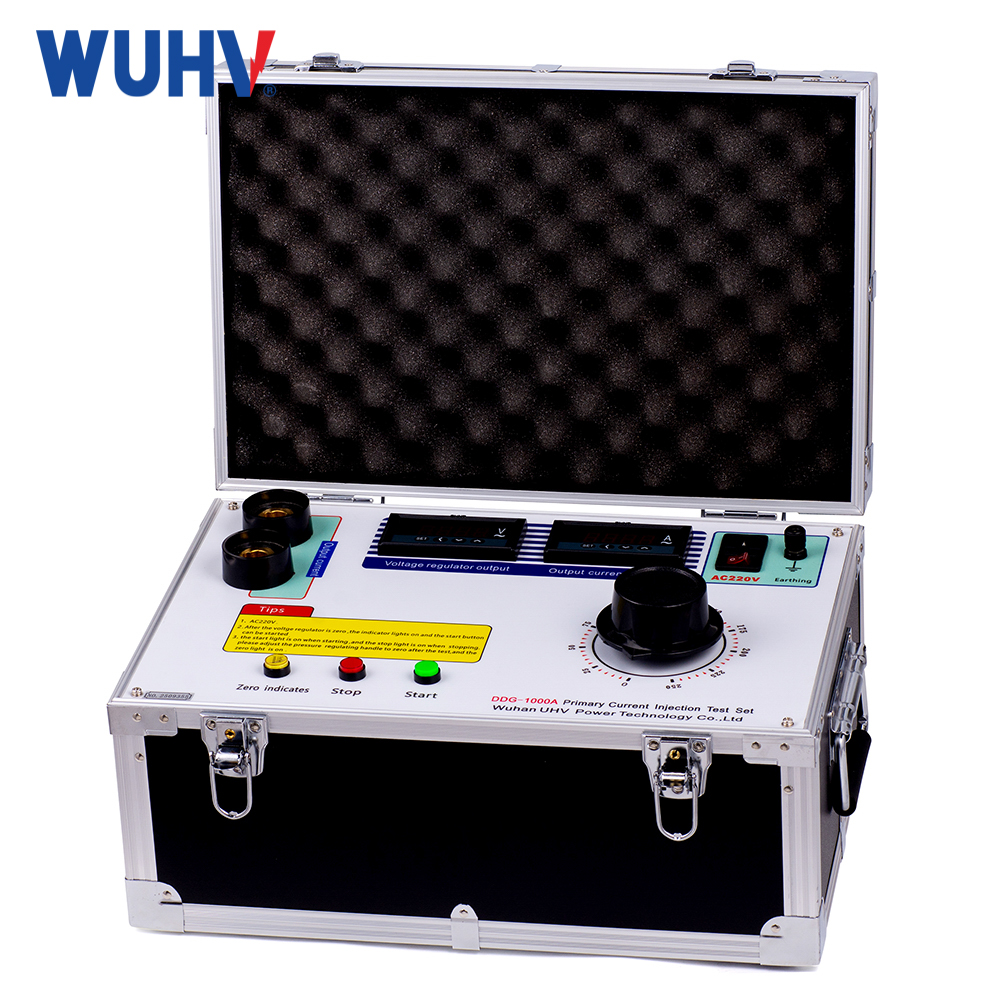

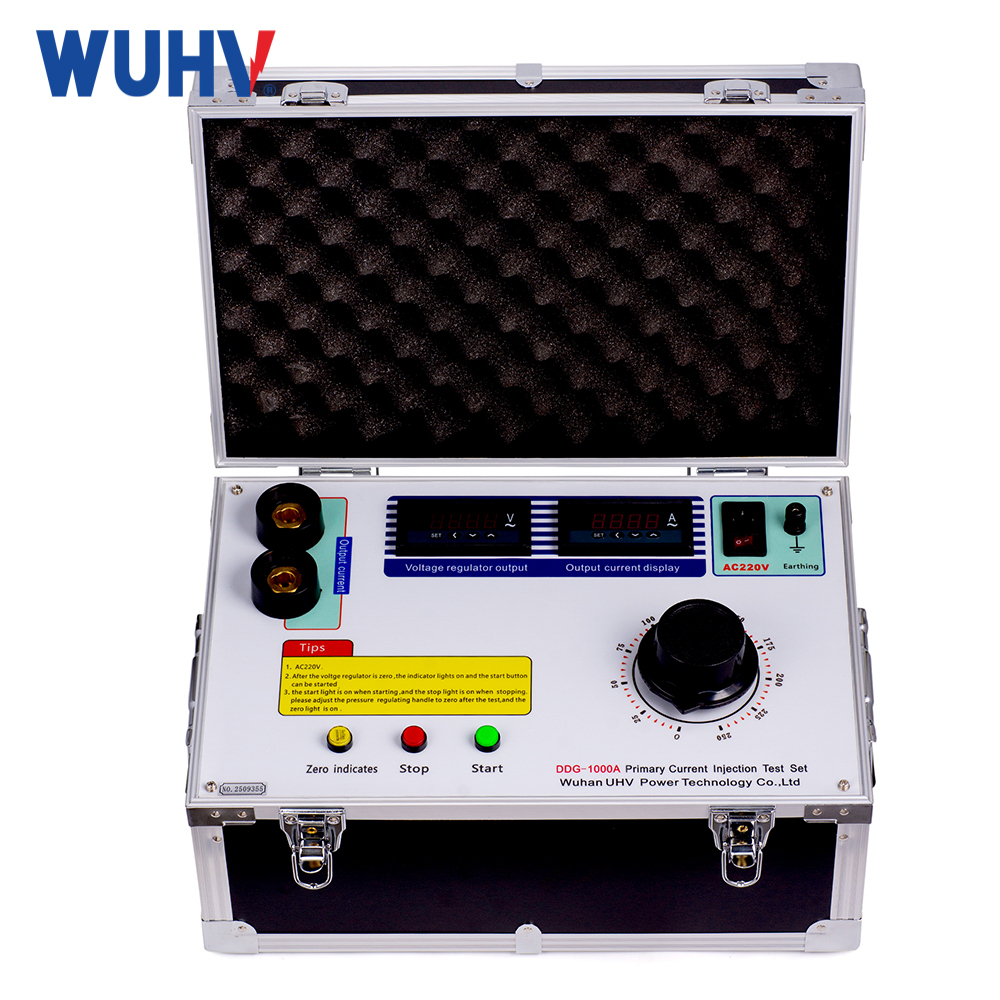

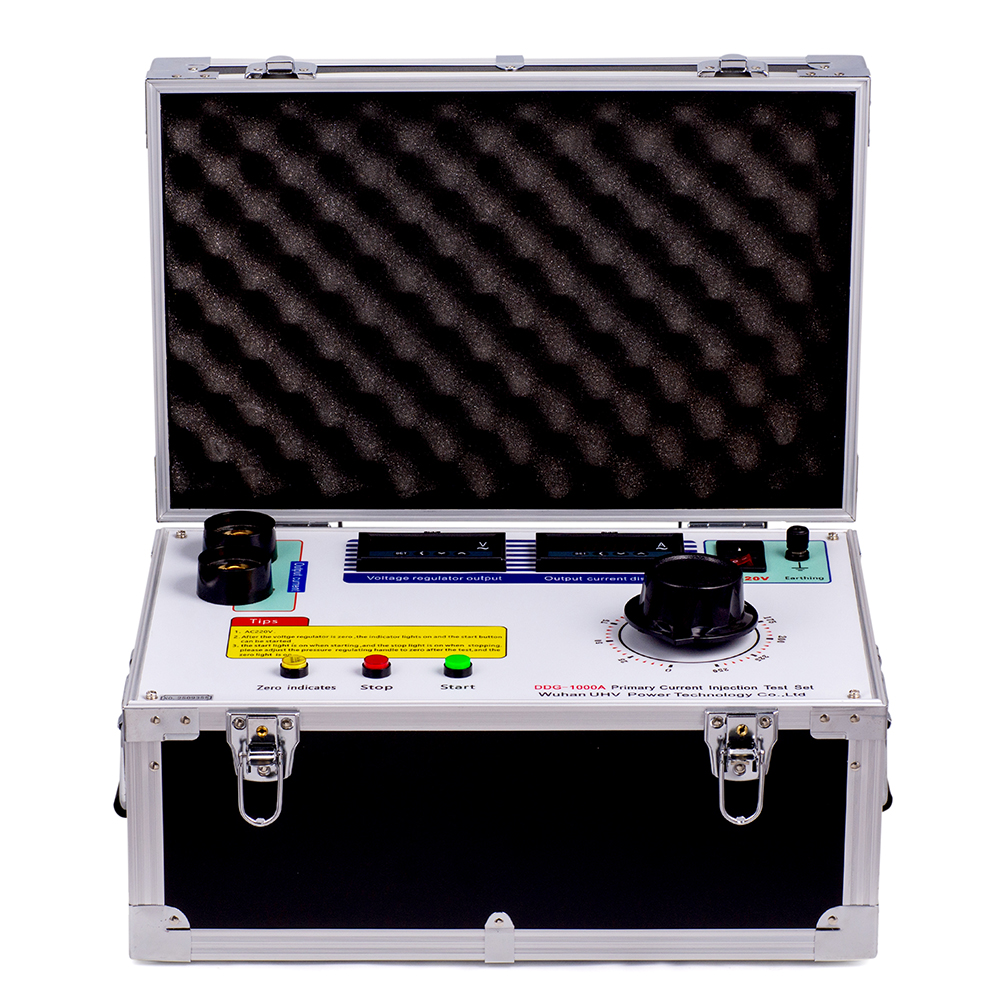

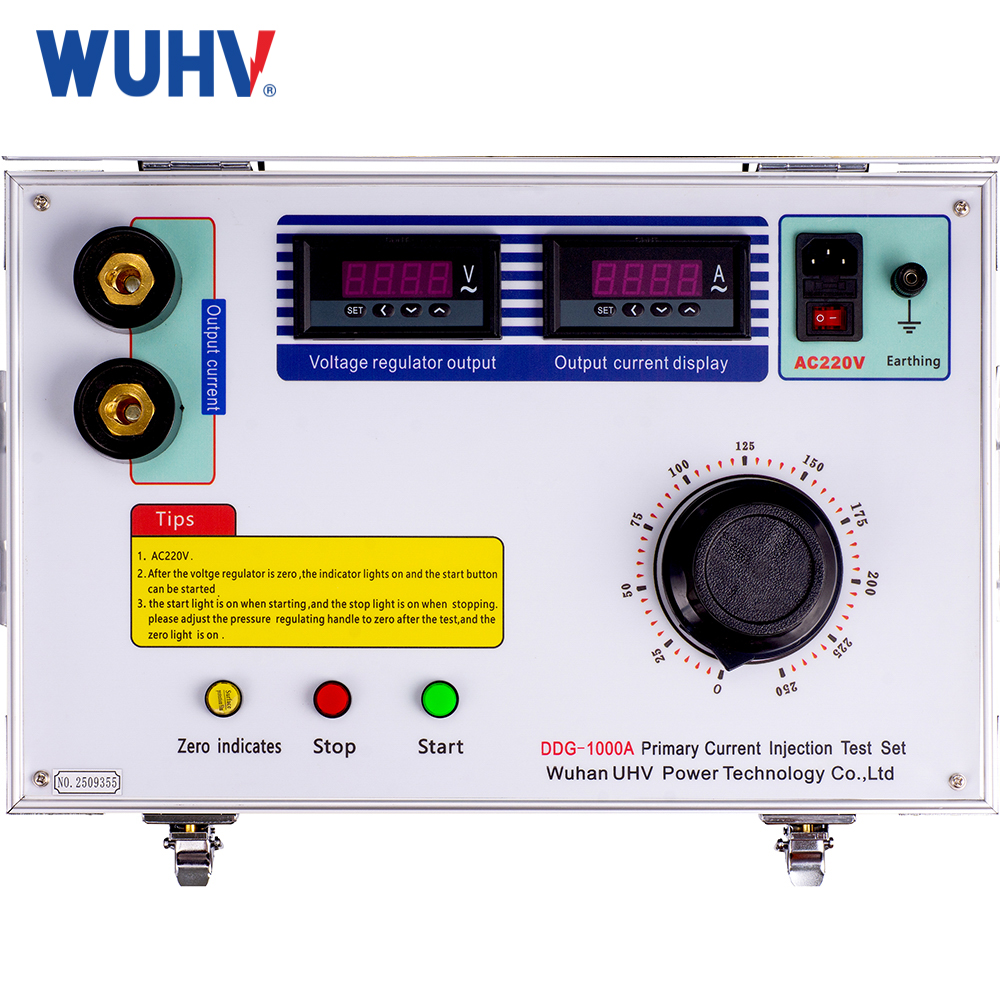

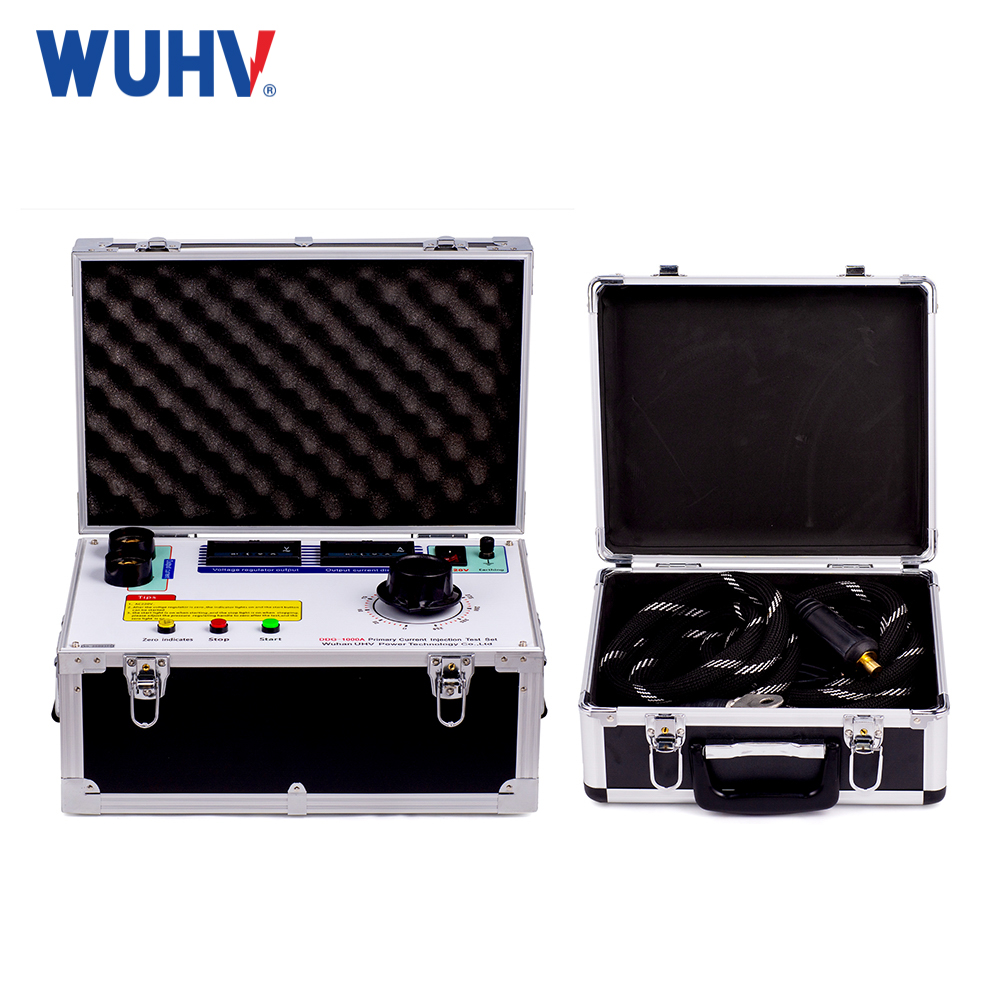

A Primary Current Injector Test Set is a specialized electrical testing equipment that can generate currents of up to thousands or even tens of thousands of amperes. It is commonly referred to as a "current booster" or "current source", and its core function is to simulate and provide high currents far beyond what ordinary power sources can provide.
It is an indispensable safety testing equipment in the power system, electrical manufacturing industry, and scientific research institutions. It simulates extreme current conditions to ensure the safe and reliable operation of power equipment, especially in the event of a short circuit fault, and is an important line of defense to ensure the safety of the power grid and equipment.
Technical parameters
| type specification | capacity(kVA) | elementary | secondary | boundary dimension(mm)、length×relax×high-priced | weightkg | structural style | ||
| V1 | A1 | V2 | A2 | |||||
| DDG-500 | 3 | 220 | 15 | 6 | 500 | 430×338×550 | 48 | an organic whole |
| DDG-1000 | 6 | 220 | 27 | 6 | 1000 | 500×380×600 | 80 | an organic whole |
| DDG-2500 | 15 | 380 | 39.5 | 6 | 2500 | 600×430×790 | 145 | an organic whole |
| DDG-4000 | 24 | 380 | 63 | 6 | 4000 | 640×450×820 | 180 | an organic whole/fission |
| DDG-5000 | 30 | 380 | 79 | 6 | 5000 | 600×430×900、300×500×500 | 145、135 | fission |
| DDG-6000 | 36 | 380 | 95 | 6 | 6000 | 600×430×900、300×500×500 | 150、140 | fission |
| DDG-8000 | 48 | 380 | 126 | 6 | 8000 | 600×450×950、350×550×550 | 180 | fission |
| DDG-10000 | 60 | 380 | 158 | 6 | 10000 | 800×600×1100、380×550×600 | 200 | fission |
Feature:
Main Applications:
Thermal and dynamic stability testing of circuit breakers, switches, and contactors.
Calibration and ratio testing of current transformers.
Temperature rise tests for busbars, bushings, and cable terminations.
Setting and verification of relay protection devices.
Scientific research and laboratory experiments requiring high current.
