Product Introduction

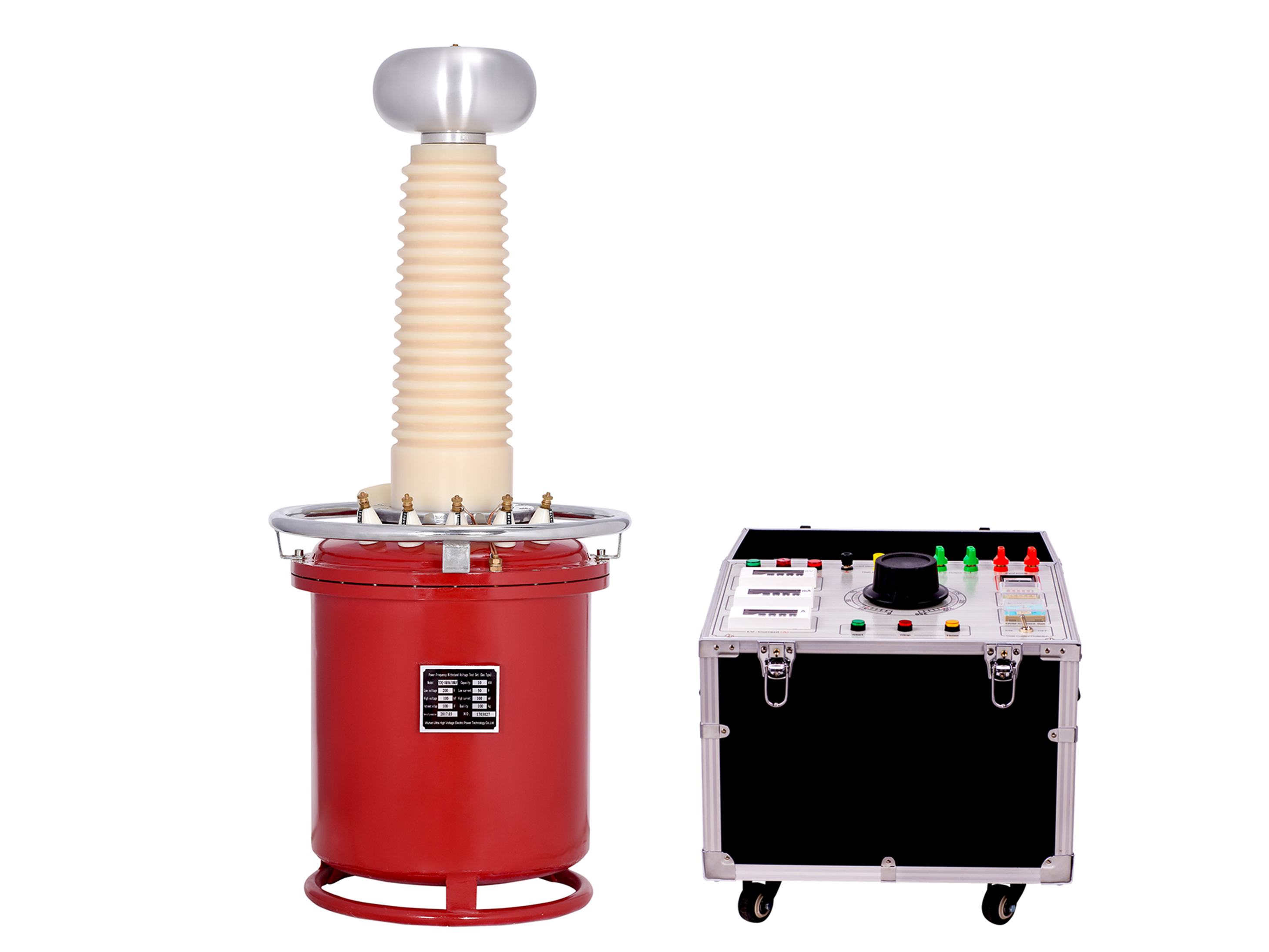

This sophisticated, fully modernized test set is designed for performing AC and DC dielectric withstand (hipot) and insulation tests on high-capacity electrical equipment. Its defining features include a digital display and a high power rating of 10 kVA, placing it in a significantly higher performance class compared to older pointer-style models.
المعايير الفنية
فئة الجهد | 10 كيلو فولت - 300 كيلو فولت |
نطاق السعة | 1-500 كيلو فولت أمبير |
مقاومة الجهد | ≤8% |
عدم التحميل الحالي | <7% |
نوع المنتج | AC، AC & DC، سلسلة AC، سلسلة AC DC. |
المواصفات الرئيسية
نموذج | سعة (كيلو فولت أمبير) | الجهد العالي (كيلو فولت) | الجهد العالي الحالي (مللي أمبير) | مساهمة الجهد | نسبة | ارتفاع درجة الحرارة ℃(30 دقيقة) | |
الجهد (الخامس) | الحالي (أ) | ||||||
يدق-1.5/50 | 1.5 | 50 | 30 | 200 | 7.5 | 500 | 10 |
YDQ-3/50 | 3 | 50 | 60 | 200 | 15 | 500 | 10 |
YDQ-5/50 | 5 | 50 | 100 | 200 | 25 | 500 | 10 |
YDQ-10/50 | 10 | 50 | 200 | 200 | 50 | 500 | 10 |
YDQ-20/50 | 20 | 50 | 400 | 400 | 53 | 500 | 10 |
يدق-30/50 | 30 | 50 | 600 | 400 | 79 | 500 | 10 |
YDQ-50/50 | 50 | 50 | 1000 | 400 | 12 | 500 | 10 |
YDQ-5/100 | 5 | 100 | 50 | 200 | 25 | 1000 | 10 |
يدق-10/100 | 10 | 100 | 100 | 200 | 50 | 1000 | 10 |
يدق-20/100 | 20 | 100 | 200 | 400 | 53 | 1000 | 10 |
يدق-30/100 | 30 | 100 | 300 | 400 | 79 | 1000 | 10 |
يدق-50/100 | 50 | 100 | 500 | 400 | 132 | 1000 | 10 |
YDQ-20/150 | 20 | 150 | 133 | 400 | 53 | 1500 | 10 |
يدق-30/150 | 30 | 150 | 200 | 400 | 80 | 1500 | 10 |
YDQ-50/150 | 50 | 150 | 333 | 400 | 132 | 1500 | 10 |
YDQ-100/150 | 100 | 150 | 667 | 400 | 263 | 1500 | 10 |
يدق-50/200 | 50 | 200 | 250 | 400 | 132 | 2000 | 10 |
يدق-100/200 | 100 | 200 | 500 | 400 | 263 | 2000 | 10 |
يدق-150/200 | 150 | 200 | 750 | 400 | 395 | 2000 | 10 |
يدق-200/200 | 200 | 200 | 1000 | 400 | 526 | 2000 | 10 |
يدق-300/200 | 300 | 200 | 1500 | 400 | 790 | 2000 | 10 |
YDQ-50/300 | 50 | 300 | 170 | 400 | 132 | 3000 | 10 |
يدق-100/300 | 100 | 300 | 333 | 400 | 263 | 3000 | 10 |
YDQ-150/300 | 150 | 300 | 500 | 400 | 395 | 3000 | 10 |
YDQ-200/300 | 200 | 300 | 667 | 400 | 526 | 3000 | 10 |
YDQ-300/300 | 300 | 300 | 1000 | 400 | 790 | 3000 | 10 |
Product Features:
1. Small size, light weight.
2. Clean, no oil, maintenance-free.
3. Free from harsh climate impacts, site handling still can do the test.
4. Dielectric strength significantly higher than oil type, corona minimal.
